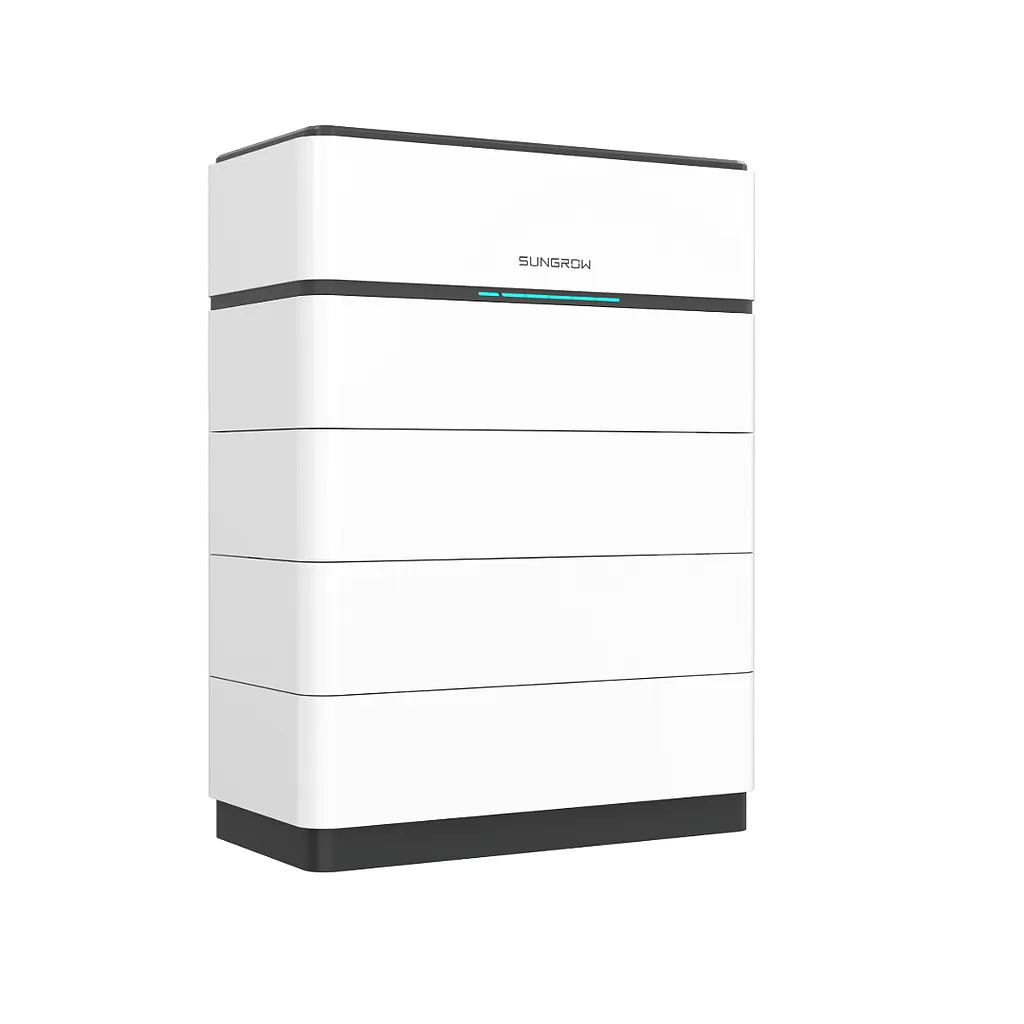

he Sungrow SBH series is a high-voltage, stackable Lithium Iron Phosphate (LFP) battery designed for residential and light commercialsolar, featuring a 5kWh module capacity. It supports 4–8 modules per stack and up to 4 parallel stacks (max 160kWh). Key benefits include a 50A continuous charge/discharge, rapid 10ms backup transition, IP55 rating, and 10-year warranty.
Key Features and Capabilities:
- Modular Design: 5kWh per module, allowing for easy expansion as energy needs grow.
- High Performance: Up to 50A continuous charge/discharge, with maximum power exceeding 25kW, suitable for high-load, three-phase homes.
- Safety & Durability: Utilizes Lithium Iron Phosphate (LFP) technology, which offers high safety and longevity. The system is IP55-rated for both indoor and outdoor installation.
- Backup Power: Enables whole-home backup support for appliances like AC and fridges during outages.
- Compatibility: Works seamlessly with Sungrow's hybrid inverters for optimal solar usage.
- Monitoring: Includes real-time performance tracking via the iSolarCloud App
Technical Specifications:
- Module Capacity: 5 kWh.
- Voltage: High Voltage (HV).
- Modules per Unit: 4–8.
- Maximum Parallel Capability: 4 units (up to 160 kWh).
- Weight: ~52 kg per module.
- Warranty: 10 years.
The system supports a plug-and-play architecture, making installation straightforward with no cables between battery modules.
