Inverters by SMA Australia
WHY SMA?
*NQ Solar has been installing SMA inverters in North Queensland for over 14 years. They are our preferred brand of inverter as we believe they are best suited to our environment. SMA is committed to driving Australia’s transition to clean, renewable energy for a sustainable future for generations to come.
#1European PV inverter manufacturer brand. With its German engineering and design, SMA is the chosen inverter brand for the Australian solar market*. |
38 YEARSexperience, making SMA the world’s longest servicing solar inverter manufacturer. |
75GW+installed inverter capacity worldwide. That is enough to close down all of Australia’s power stations, twice over – never needing to rely on fossil fuels again. |
>750,000SMA inverters already installed across Australia alone, producing more than 35% of all solar electricity in the country. |
WHY CHOOSE SMA AND A POWERUP PARTNER?
With over 5800 accredited installers in Australia, choosing the right installer is challenging. Make sure you find the best installer with the SMA PowerUP Partner Network. Our independent partners understand the importance of quality German engineering in delivering you the best solar solutions.
5+5 WARRANTY
FREE +5 years warranty only for systems purchased from SMA PowerUP Partners, through SMA Authorised Distributors.
24/7 SERVICE
through automatic inverter monitoring by SMA with the Smart Connected package. SMA PowerUP Partners will be informed of any inverter events before you even notice them.
DESIGNED FOR YOU
SMA PowerUP Partners are trained in the use of SMA System Design tools to ensure your solar system is both cost effective and designed to meet your individual needs.
QUALITY MATTERS
SMA PowerUP Partners are solar professionals fully accredited by the Clean Energy Council and trained by SMA to ensure the quality of the PV system and its installation.
PEACE OF MIND
Contact SMA PowerUP Partners for any support needed at any time. They have priority access to SMA resources and therefore ensure that you will always have the best experience with your SMA solar system.

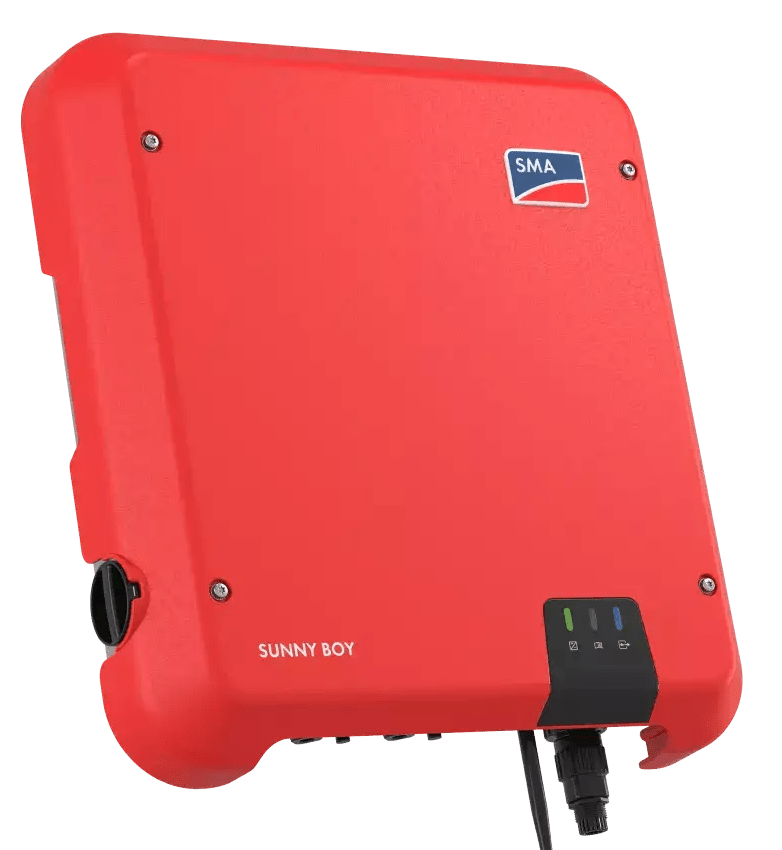

SUNNY BOY 3.0 / 3.6 / 4.0 / 5.0 / 6.0
Higher yields for private homes — intelligent solar power generation
The new Sunny Boy 3.0–6.0 ensures maximum energy yields for private homes. This inverter combines the integrated Service SMA Smart Connected service and intelligent technology for all ambient requirements. Thanks to its extremely light design, the device can be installed quickly and easily. The Sunny Boy can be commissioned quickly via smartphone or tablet thanks to its integrated web interface. For specific requirements on the roof, such as shading, the TS4-R module optimizers can be added into the system, with all communication and monitoring facilitated through the inverter. Current communication standards make the inverter future-proof, meaning intelligent energy management solutions as well as SMA storage solutions can be flexibly added anytime
|
Compact
Easy to use
High yields
Combinable
|
SMA Smart Connected
The integrated service for ease and comfort
SMA Smart Connected* is the free monitoring of the inverter via the SMA Sunny Portal. If there is an inverter fault, SMA proactively informs the PV system operator and the installer. This saves valuable working time and costs.
With SMA Smart Connected, the installer benefits from rapid diagnoses by SMA. They can thus quickly rectify the fault and score points with the customer thanks to the attraction of additional services.
Activation of SMA SMART CONNECTED
During registration of the system in the Sunny Portal, the installer activates SMA Smart Connected and benefits from the automatic inverter monitoring by SMA.
Automatic inverter monitoring
SMA takes on the job of inverter monitoring with SMA Smart Connected. SMA automatically checks the individual inverters for anomalies around the clock during operation. Every customer thus benefits from SMA’s long years of experience.
Proactive communication in the event of faults
After a fault has been diagnosed and analyzed, SMA informs the installer and end customer immediately by e-mail. Everyone is thus optimally prepared for the troubleshooting. This minimizes the downtime and saves time and money. The regular power reports also provide valuable information about the overall system.
Replacement service
If a replacement device is necessary, SMA automatically supplies a new inverter within one to three days of the fault diagnosis. The installer can contact the PV system operator of their own accord and replace the inverter.
PERFORMANCE SERVICE
The PV system operator can claim compensation from SMA if the replacement inverter cannot be delivered within three days.
Sunny Boy Technical Information
Access the Sunny Boy Range full table of technical specifications below
Technical Specifications Table
| Technical data | Sunny Boy 3.0 | Sunny Boy 3.6 | Sunny Boy 4.0 | Sunny Boy 5.0 | Sunny Boy 6.0 |
| Input (DC) | |||||
| Max. generator power | 5500 Wp | 5500 Wp | 7500 Wp | 7500 Wp | 9000 Wp |
| Max. input voltage | 600 V | ||||
| MPP voltage range | 110 V to 500 V | 130 V to 500 V | 140 V to 500 V | 175 V to 500 V | 210 V to 500 V |
| Rated input voltage | 365 V | ||||
| Min. input voltage / initial input voltage | 100 V / 125 V | ||||
| Max. input current input A / input B | 15 A / 15 A | ||||
| Max. DC short-circuit current input A / input B | 22 A / 22 A | ||||
| Number of independent MPP inputs / strings per MPP input | 2 / A:2; B:2 | ||||
| Output (AC) | |||||
| Rated power (at 230 V, 50 Hz ) | 3000 W | 3680 W | 4000 W | 5000 W | 6000 W |
| Max. apparent power AC | 3000 VA | 3680 VA | 4000 VA | 5000 VA | 6000 VA |
| Nominal AC voltage / range | 220 V, 230 V, 240 V / 180 V to 280 V | ||||
| AC power frequency / range | 50 Hz, 60 Hz / −5 Hz to +5 Hz | ||||
| Rated power frequency / rated grid voltage | 50 Hz / 230 V | ||||
| Max. output current | 16 A | 16 A | 22 A | 22 A | 26.1 A |
| Power factor at rated power | 1 | ||||
| Adjustable displacement power factor | 0.8 overexcited to 0.8 underexcited | ||||
| Feed-in phases / connection phases | 1/1 | ||||
| Efficiency | |||||
| Max. efficiency / European Efficiency | 97.0% / 96.4% | 97.0% / 96.5% | 97.0% / 96.5% | 97.0% / 96.5% | 97.0% / 96.6% |
| Protective devices | |||||
| Input-side disconnection point | ● | ||||
| Ground fault monitoring / grid monitoring | ● / ● | ||||
| DC reverse polarity protection / AC short circuit current capability / galvanically isolated | ● / ● / — | ||||
| All-pole-sensitive residual-current monitoring unit | ● | ||||
| Protection class (as per IEC 61140) / overvoltage category (according to IEC 60664-1) | I / III | ||||
| General data | |||||
| Dimensions (W / H / D) | 435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches ) | ||||
| Weight | 17.5 kg (38.5 lb) | ||||
| Operating temperature range | ‒25°C to +60°C (‒13°F to +140°F) | ||||
| Noise emission, typical | 25 dB(A) | ||||
| Self-consumption (at night) | 25 dB(A) | ||||
| Topology | Transformerless | ||||
| Cooling method | Convection | ||||
| Degree of protection (as per IEC 60529) | IP65 | ||||
| Climatic category (as per IEC 60721-3-4) | 4K4H | ||||
| Max. permissible value for relative humidity (noncondensing) | 100% | ||||
| Equipment | |||||
| DC connection / AC connection | SUNCLIX / AC connector | ||||
| Display via smartphone, tablet, laptop | ● | ||||
| Interfaces: WLAN / Ethernet / RS485 | ● / ● / ● | ||||
| Communication protocols | Modbus (SMA, Sunspec), Webconnect, SMA Data, TS4-R | ||||
| Shade management: OptiTrac Global Peak / TS4-R | ● / ○ | ||||
| Warranty: 5 / 10 / 15 years | ● / ○ / ○ | ||||
| Certificates and approvals (more available upon request) | AS 4777.2, C10/11, CE, CEI 0-21, EN 50438, G59/3-4, G83/2-1, DIN EN 62109 / IEC 62109, NEN-EN50438, IE-EN50438, NT_Ley20.571, ÖVE/ÖNORM E 8001-4-712 & TOR D4, PPDS, PPC, RD1699, TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1, VFR 2014 | ||||
| Certificates and approvals (planned) | DEWA, IEC 61727, IEC 62116, MEA, NBR16149, PEA, SI4777, TR3.2.2 | ||||
| Country availability of SMA Smart Connected | AU, AT, BE, CH, DE, ES, FR, IT, LU, NL, UK | ||||
| ● Standard features ○ Optional features — Not available Data at nominal conditions Status: 04/2019 1) 4600 W / 4600 VA according to VDE-AR-N 4105 2) AS 4777: 21.7 A |
|||||
| Type designation | SB3.0-1AV-41 | SB3.6-1AV-41 | SB4.0-1AV-41 | SB5.0-1AV-41 | SB6.0-1AV-41 |
