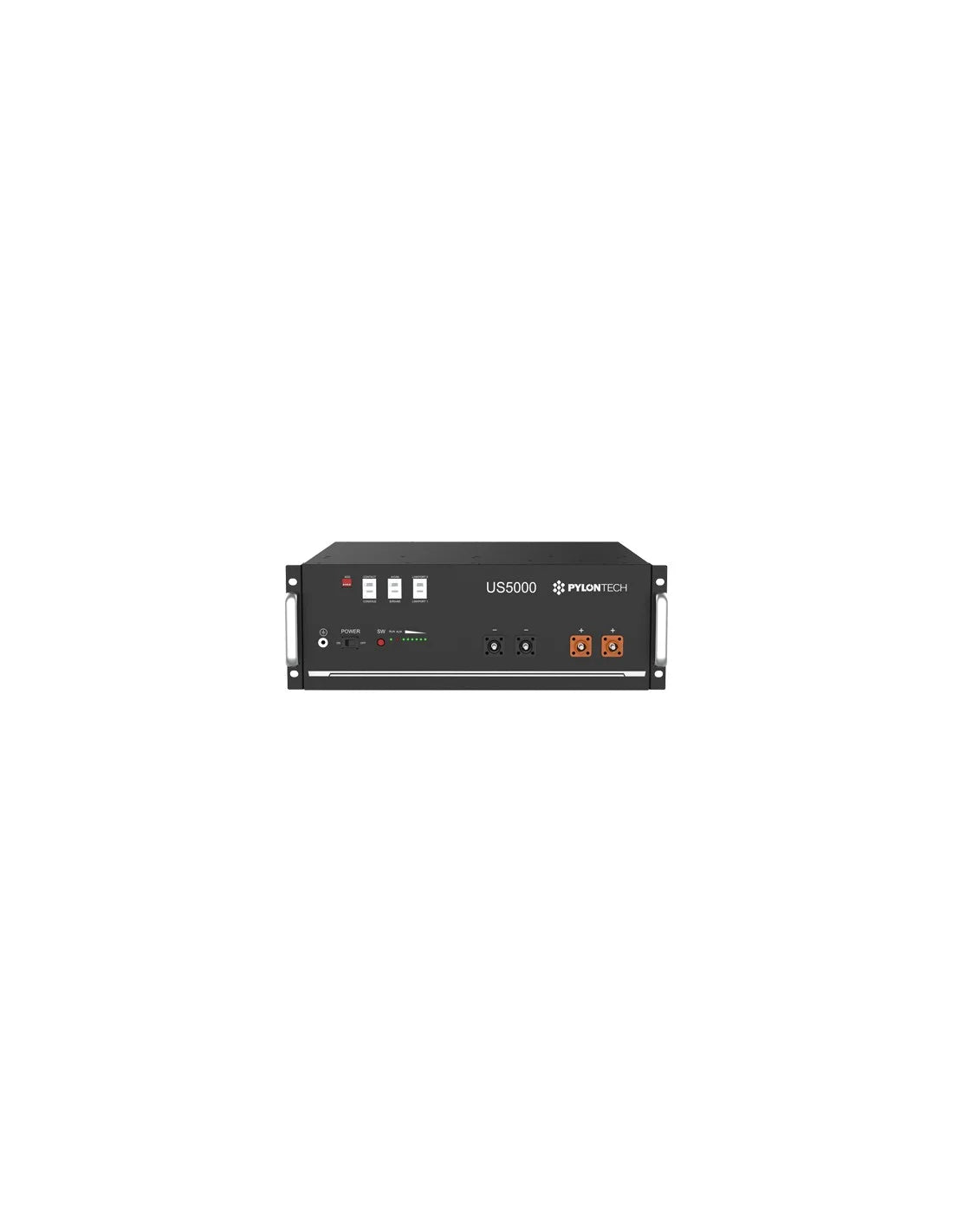

The Pylontech US5000/US5000B is a 48V, 4.8kWh (4.56kWh usable) Lithium Iron Phosphate (LiFePO4) battery module. It features a 19-inch rack-mount design with >6000 cycles at 95% DoD, a 10-year warranty, and supports CAN/RS485 communication. Designed for residential/commercial energy storage, it is modular for scalability up to 1.7MWh.
Key Features and Specifications
- Chemistry: LiFePO4, providing high safety and long cycle life.
- Capacity: 4.8kWh nominal (approx. 4.56kWh usable).
- Voltage: 48V nominal.
-
Cycle Life: >6000 cycles at 25 degrees, with 95% Depth of Discharge (DoD).
- Battery Management System (BMS): Includes protection against over-discharge, over-charge, over-current, and temperature extremes.
- Compact Design: 4RU height (161mm), suitable for 19-inch rack or cabinet installations.
- Scalability: Allows parallel connection to expand capacity (up to 16 modules per string).
- Compatibility: Compatible with many hybrid inverters (e.g., Victron, Goodwe, Solis).
Key Advantages
- Longevity: 15+ years design life.
- Safety: Certified to international standards including UL1973, CE, and UN38.3.
- Performance: Features a built-in soft-start function to reduce current strikes on the inverter during startup.
- Maintenance: Features intelligent cell balancing and automatic addressing for multi-group connections.
Physical Dimensions
-
Dimensions: Roughly 442 x 420 x 161 mm
- Weight: Approximately 39.5-40 kg.
